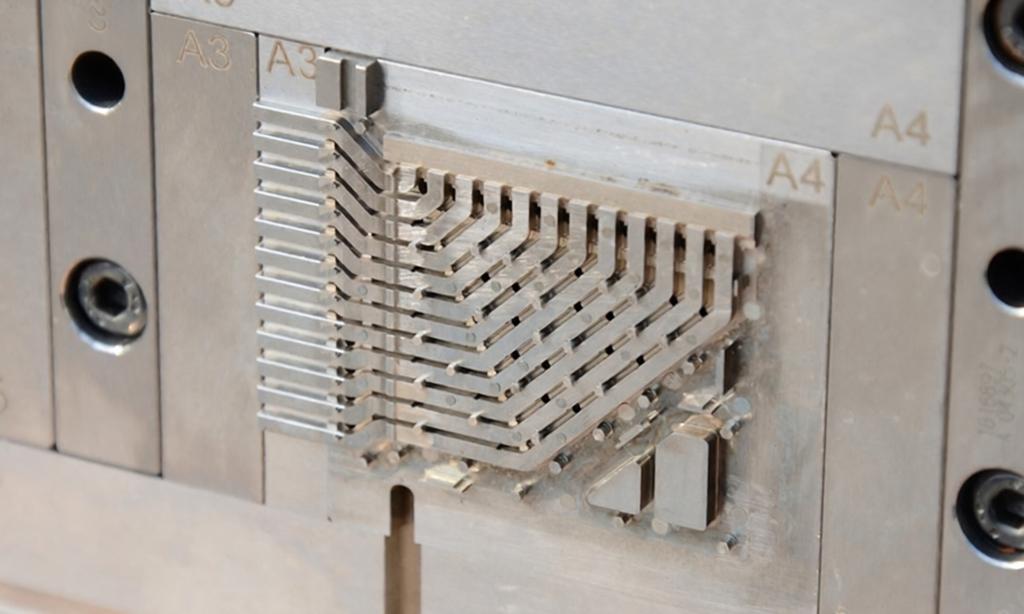

For manufacturers and purchasers focusing on tight-tolerance molded parts, understanding the key factors affecting precision mold accuracy is essential to control product quality, stabilize mass production, and reduce rejection risks.

1. Mold Material Selection: The Fundamental Guarantee of Accuracy

Material quality is the primary prerequisite for long-term mold accuracy. Inferior materials will cause irreversible deformation and dimensional deviation throughout machining and mass production, no matter how sophisticated the processing technology is.

High-Quality Mold Steel Performance

Premium precision molds adopt high-grade mold steel with stable chemical composition, uniform heat treatment effect, and extremely low internal stress. Such steel effectively avoids deformation, shrinkage, and distortion during long-cycle continuous production. In contrast, low-quality steel or improper heat treatment leads to frequent mold deformation, resulting in unstable product dimensions and shortened mold service life.

Plastic Material Shrinkage & Thermal Properties

All plastic materials have unique physical characteristics including shrinkage rate, crystallization degree, and thermal expansion coefficient. If the mold design fails to fully adapt to the specific properties of the target plastic material, finished products will suffer from dimensional deviation, warpage, and shrinkage cavities — even if the mold itself achieves perfect machining accuracy.

2. Professional Mold Design: Define the Upper Limit of Mold Accuracy

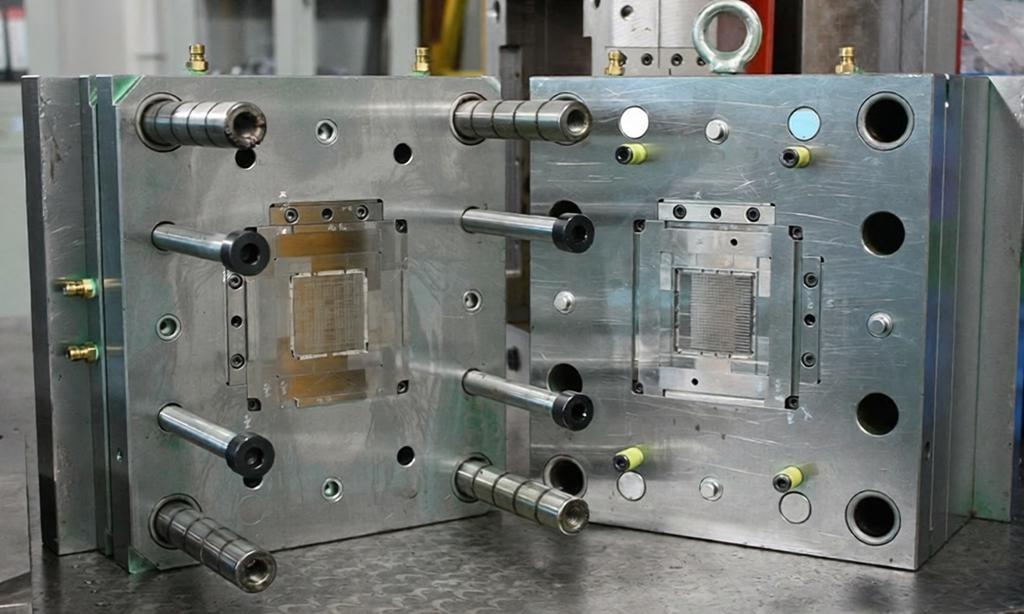

Mold design determines the inherent accuracy ceiling of a mold. Unreasonable structural design will leave inherent defects that cannot be compensated by later machining and process adjustment.

Reasonable Structural Layout

High-precision mold design focuses on scientific gate position, optimized runner system, uniform cooling pipeline layout, and efficient exhaust structure. A well-designed structure ensures balanced plastic filling, eliminates internal stress concentration, and avoids common defects such as product warpage, deformation, and uneven wall thickness.

Scientific Tolerance Allocation & Assembly Matching

Precision molds are composed of multiple matching components. The tolerance of each part directly affects the overall assembly accuracy and operational stability. Professional manufacturers implement refined tolerance allocation for different mold components, ensuring seamless assembly consistency and maintaining stable micron-level accuracy in long-term high-volume production.

3. High-Precision Machining Technology: Turn Design into Real Precision

Excellent design solutions rely on advanced machining technology to be realized. Machining equipment, processing technology, and process management together determine the final dimensional accuracy of the mold.

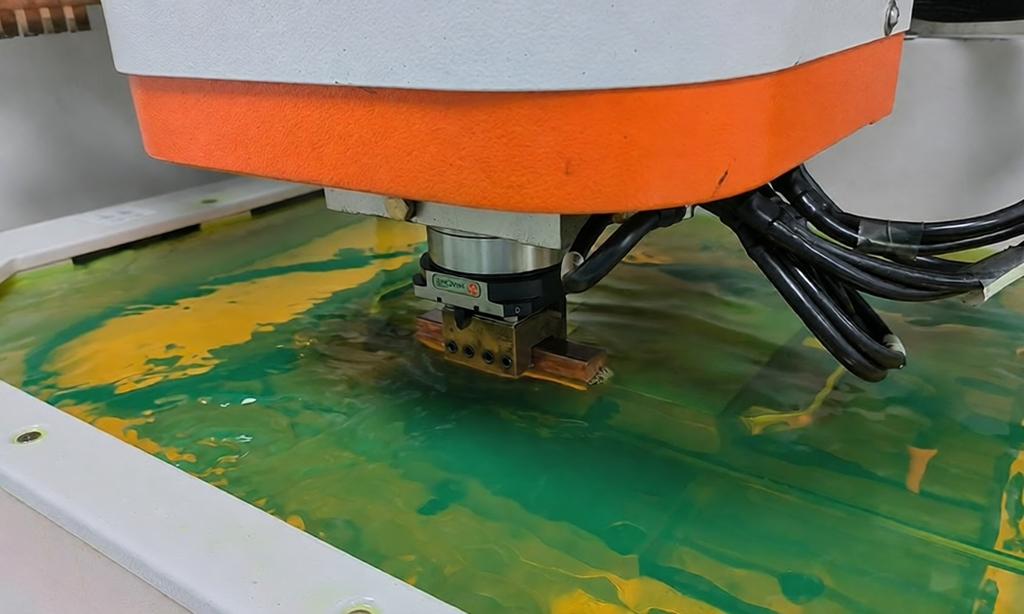

High-accuracy molds depend on advanced CNC machining, precision grinding, EDM, and fine finishing processes. The repeatability and stability of machining equipment directly influence dimensional consistency between mold components.

Professional manufacturers strictly control tool wear, thermal deformation, and multi-stage stress relief during machining. These refined process controls are the key to maintaining micron-level mold accuracy.

4. Injection Molding Process Parameters: Ensure Accuracy Repeatability

A high-precision mold cannot deliver qualified products without standardized and stable injection molding process control. Process parameters directly affect the final dimension and appearance of molded parts.

Key controllable parameters include injection pressure, injection speed, mold temperature, holding pressure, and cooling time. Precision molding requires narrow and stable process windows, demanding professional technical tuning and stable molding systems to avoid dimensional fluctuation.

5. Equipment & Production Environment Stability

Injection Molding Machine Performance

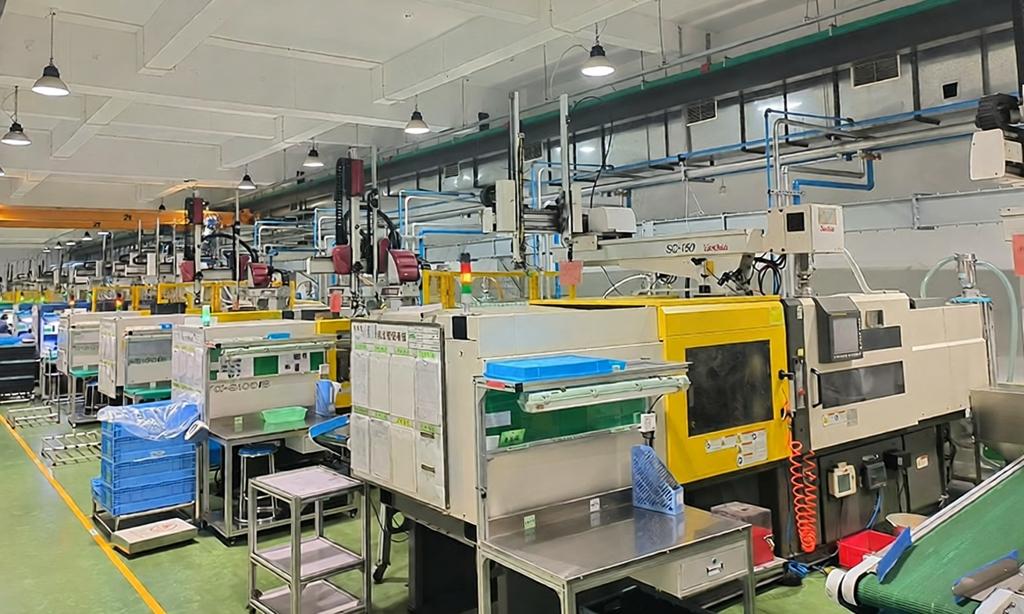

High-precision production requires injection machines with high repeatability, stable pressure output, and accurate temperature regulation. Equipment jitter and parameter drift will directly cause dimensional variation of finished parts.

Environmental Conditions

Workshop temperature and humidity changes will subtly affect plastic fluidity and mold thermal balance. For long-term mass production of high-precision parts, a constant production environment is essential to maintain consistent product accuracy.

6. Why Experienced Precision Mold Manufacturers Matter

Mold accuracy is never determined by a single factor. It relies on a complete systematic manufacturing solution covering professional design, high-precision machining, standardized process control, and strict quality management.

Reliable precision mold manufacturers provide customized mold design according to product application scenarios, stabilize machining quality, and ensure consistent dimensional accuracy throughout mass production cycles. This is especially critical for high-standard components such as connectors and wiring harness parts that require high reliability and tight tolerance consistency.

The post Key Factors That Influence Precision Mold Accuracy appeared first on Mastdew.

1. Medical Devices Have Far Stricter Requirements Than Ordinary Electronic Products

Medical equipment serves diagnosis, monitoring, treatment and other life-related scenarios, and requires long-term stable, high-precision operation. Unlike consumer electronics and ordinary industrial equipment, medical device wire harnesses must meet ultra-high industrial standards in multiple dimensions:

• Ultra-stable low-loss signal transmission to avoid data deviation and diagnosis errors
• High-strength EMI and RFI shielding performance to resist on-site electromagnetic interference
• Durable material performance, adapting to long-term continuous working conditions
• Ultra-thin and flexible structural design to adapt to compact internal equipment wiring
• Full compliance with medical industry certification and regulatory specifications

Universal wire harnesses are designed for general and low-standard application scenarios, with single performance and poor targeted adaptability, which cannot support the stable operation of professional medical equipment.

2. Hidden Risks of Universal Wire Harnesses in Medical Equipment

Standard universal wire harnesses adopt unified specifications and cannot be perfectly matched with personalized medical device structures and functional needs. Blind use will bring multiple hidden dangers to equipment operation and product certification:

• Mismatched specifications: Inconsistent connector model, size and wiring position, resulting in difficult assembly and poor fitting
• Unqualified anti-interference performance: Insufficient shielding design, prone to signal fluctuation and data distortion
• Poor medical environmental adaptability: Ordinary materials cannot withstand frequent cleaning, disinfection and chemical corrosion, and are easy to age and damage
• Low mechanical durability: Poor flexibility and limited bending life, easy to break after repeated bending and movement
• Compliance certification obstacles: It is difficult to meet medical industry standards, resulting in failed product certification and delayed market launch

These problems will not only increase equipment failure rate and later maintenance costs, but also bring serious regulatory risks and safety hazards to medical device manufacturers.

3. Core Advantages of Custom Medical Device Wire Harnesses

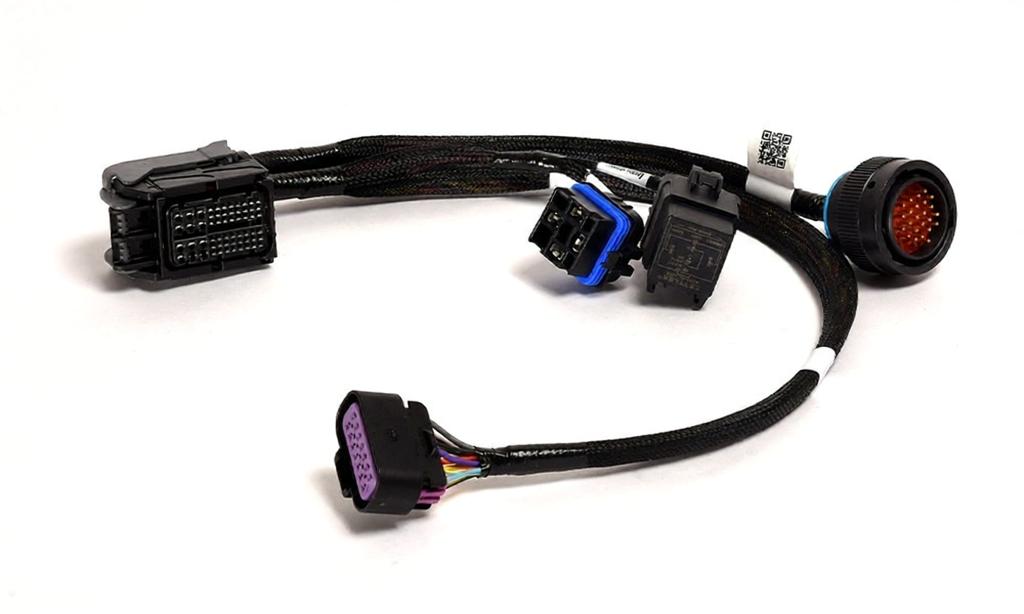

Customized wire harnesses are tailor-made according to the structural design, functional parameters and application scenarios of medical devices, realizing “one device, one solution”, completely solving the various defects of universal harnesses.

• Perfect size and structural fit
  Customize wire length, branch direction, wiring path and connector orientation according to the internal space of the equipment, optimize the assembly process, effectively avoid installation errors, and improve production efficiency.
• High-precision signal stability
  Targeted shielding and grounding design is carried out according to the signal sensitivity of medical equipment, which can effectively isolate external electromagnetic interference and ensure long-term accurate and stable signal transmission.
• Medical-grade safe materials
  Select high-performance insulation, sheath and conductor materials that meet medical standards, with corrosion resistance, disinfection resistance, aging resistance and high flexibility, adapting to long-term medical scene use.
• Full compliance with industry regulations
  The design and production are in line with ISO 13485, RoHS and other medical industry specifications from the source, eliminating subsequent certification risks and helping products quickly pass market compliance audits.

4. Commercial Value of Custom Harnesses for Medical Manufacturers

For medical device enterprises, customized wire harnesses are not only a technical optimization, but also an important strategic layout for product quality and market competitiveness:

• Reduce assembly errors and later equipment maintenance costs
• Greatly reduce on-site failure rate and after-sales warranty disputes
• Comprehensively improve product stability and market recognition
• Help enterprises establish high-end and reliable brand image in the regulated medical market
• Avoid repeated product redesign and shorten the product launch cycle

More and more mainstream medical device manufacturers have included customized wire harness solutions in the early product design stage, realizing overall product optimization.

5. Professional Custom Medical Wire Harness Solutions from tsp.cn

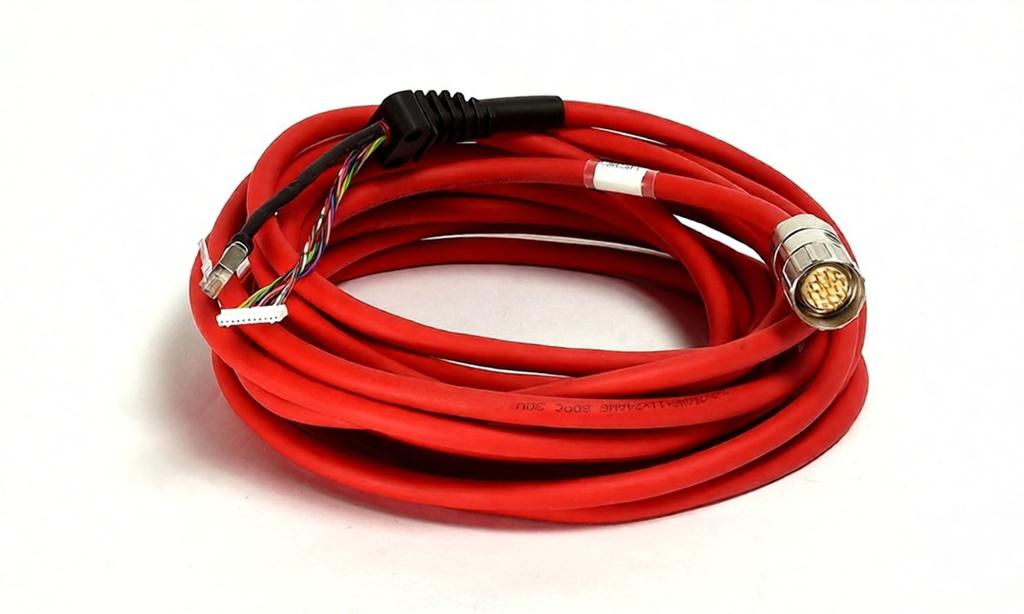

As a professional manufacturer focusing on customized wire harnesses and cable assemblies, tsp.cn has rich experience in medical device supporting services, and provides one-stop customized solutions for global medical equipment enterprises.

Our service coverage:

• Custom design of medical-grade wire harnesses and cable assemblies
• High-shielded multi-core signal wire harness solution development
• Custom processing of special medical connectors and interfaces
• Full-cycle services from prototype proofing to mass production
• Strict whole-process quality control to ensure consistent product stability

We always take medical safety, operational stability and long-term durability as the core design standards to create high-reliability supporting harness products for medical equipment.

Conclusion: Customization Is a Must for Medical Wire Harnesses

Medical device wire harnesses are not ordinary auxiliary accessories, but core functional components related to equipment safety and medical accuracy. Universal wire harnesses with general specifications can only meet low-standard ordinary equipment and cannot adapt to the stringent requirements of the medical industry.

Customized medical wire harnesses represent higher safety, stronger compliance and more stable system performance. For medical equipment manufacturing, customization is never an optional upgrade, but an indispensable industry necessity.

Get Custom Medical Wire Harness Solutions

If you are developing, upgrading or iterating medical devices and need reliable medical-grade customized wire harness suppliers, tsp.cn is your preferred partner. Our professional engineering team will provide targeted design solutions according to your product parameters and application scenarios to help your products occupy the high-end medical market.

The post Why Medical Device Wire Harnesses Must Be Customized Instead of Universal appeared first on Mastdew.

What Is Wire Gauge?

Wire gauge refers to the physical thickness/diameter of electrical wire. The global standard for industrial and electronic wiring is AWG (American Wire Gauge). Wire gauge is inversely proportional to wire thickness and current capacity:

• Lower AWG number = Thicker wire = Higher current capacity
• Higher AWG number = Thinner wire = Lower current capacity

The AWG standard ranges from 00 (thickest) to 40 (thinnest). For example, 10 AWG wire is much thicker and supports higher current than 20 AWG wire, making it suitable for power circuits instead of signal circuits.

Why Correct Wire Gauge Selection Is Critical

Improper wire gauge selection leads to hidden safety hazards and performance failures. Choosing wire that is too thin or too thick will both negatively impact your system:

• Prevent overheating & fire risks: Undersized wires cannot bear rated current, causing excessive heat accumulation, insulation melting, short circuits, and even fire hazards.
• Avoid voltage drop: Thin wires have higher resistance, resulting in significant voltage drop over long-distance wiring, which causes unstable equipment operation and signal distortion.
• Optimize cost & structure: Overly thick wires increase harness volume, weight, material cost, and assembly difficulty, while reasonable sizing balances safety and economy.
• Extend service life: Matched wire gauge ensures stable load operation, avoiding accelerated aging and fatigue damage.

Key Factors to Consider When Selecting Wire Gauge

1. Current Carrying Capacity (Ampacity)

Ampacity is the maximum safe current a wire can continuously carry under normal working conditions. It is the primary basis for wire gauge selection. Different AWG sizes have fixed standard ampacity ranges for copper wires, which applies to most custom wiring harness scenarios.

2. Application Industry & Usage Scenarios

Different industries have differentiated wire size conventions based on load characteristics and working environments:

• Automotive wiring: Mainly 12 AWG – 16 AWG for vehicle power and control circuits
• Industrial equipment: Heavy-load circuits adopt 8 AWG – 10 AWG thick wires
• Consumer electronics & medical devices: 20 AWG – 22 AWG thin wires for low-power and signal transmission

3. System Voltage Rating

Wire insulation must match the system’s maximum working voltage. Low-voltage wires cannot be used in high-voltage systems, which will cause insulation breakdown and leakage risks. Typical voltage specifications include 12V/24V for automotive harnesses and 600V/1000V for industrial wiring.

4. Working Temperature & Environment

High-temperature, humid, or corrosive environments require high-temperature resistant insulation materials. Ordinary PVC is suitable for conventional environments, while Teflon and silicone rubber insulation are widely used for high-temperature automotive and industrial wiring harnesses.

5. Insulation Material Properties

Insulation determines heat resistance, wear resistance, corrosion resistance and flexibility of the harness. Reasonable matching of wire gauge and insulation ensures long-term stable operation of the harness.

Common AWG Wire Gauge Chart (Copper Wire Standard)

Below is the most commonly referenced AWG wire size ampacity and application table for custom wiring harness manufacturing:

5-Step Guide to Selecting the Right Wire Gauge

Follow this standard process to accurately determine the wire gauge for your custom wiring harness:

Step 1: Confirm the maximum working current
Calculate the peak current of the load equipment according to system voltage and power parameters, and take the maximum current value as the selection benchmark.

Step 2: Match wire size via AWG chart
Select the corresponding AWG wire gauge according to the actual current to ensure the wire ampacity has a reasonable safety margin.

Step 3: Consider environmental working conditions
Adjust the wire specification according to ambient temperature, humidity, heat dissipation space and long-term continuous working cycle.

Step 4: Select suitable insulation material
Choose PVC, Teflon, silicone and other insulation materials according to high temperature resistance, corrosion resistance and flexibility requirements.

Step 5: Verify overall compatibility
Ensure the wire diameter matches the connector terminal specifications, harness assembly space, and mechanical bending requirements. A fully matched wire gauge guarantees smooth installation, stable connection, and long-term operational reliability of the entire wiring harness system.

By strictly following the above five-step selection process, you can avoid common mistakes such as insufficient ampacity, excessive voltage drop, material waste, and assembly mismatch, realizing the perfect balance of safety, stability and cost-effectiveness for custom wiring harnesses.

The post How to Choose the Right Wire Gauge for Your Wiring Harness appeared first on Mastdew.

Unlike hard-wired circuits, connectors support flexible assembly, maintenance, and product iteration. Their core functions cover two key scenarios: conducting electrical power and transmitting various electrical signals. The quality and matching degree of connectors directly determine the overall stability, anti-interference performance, and service life of electronic systems.

Why Electrical Connectors Are Indispensable

Modern electronic equipment pursues miniaturization, high precision, and easy maintainability, making connectors an essential core part rather than a simple auxiliary accessory. Standardized and customized connectors bring multiple core values to product design and mass production:

• Higher Manufacturing Efficiency: Modular connector assembly replaces complex wiring operations, simplifying production processes and greatly improving batch production efficiency.
• Convenient Maintenance & Upgrade: Faulty modules can be quickly unplugged and replaced without cutting or rewiring circuits, reducing after-sales maintenance costs.
• Flexible Product Design: Connectors allow engineers to split product structures reasonably, realizing modular design, reducing equipment size, and optimizing overall cost control.
• Stable System Operation: Professional connectors feature precise contact structure and reliable shielding performance, effectively avoiding poor contact and signal distortion.


Complete Classification of Common Connectors

Connectors can be classified from multiple dimensions including functional purpose, signal type, electrical parameters, application environment, shape structure, and application scenarios, covering almost all industrial and consumer electronic equipment.

1. Classification by Functional Connection

Classified according to the connection relationship between electronic components and modules:

• Component-to-Packaging Connectors: Connect discrete electronic components and packaging modules.
• Packaging-to-Board Connectors: Link component packaging units to circuit boards.
• Board-to-Board Connectors: Realize electrical interconnection between different PCBs inside equipment.
• Component-to-Component Connectors: Connect independent components within the same system.
• Component-to-I/O Connectors: Connect internal components to external input and output interfaces.
• System-to-System Connectors: Complete signal and power interconnection between independent equipment systems.

2. Classification by Transmission Signal Type

• Power Connectors: Specialized in stable transmission of operating current and system power, focusing on load capacity and heat resistance.
• Signal Connectors: Mainly used for low-current signal transmission such as data, sensing and control signals, requiring high stability and low loss.
• High-Frequency Connectors: Customized for high-speed and high-frequency data transmission, widely used in communication and precision electronic equipment.

3. Classification by Electrical Performance Requirements

• General-Purpose Connectors: Standard specifications, suitable for conventional low-power and ordinary signal scenarios.

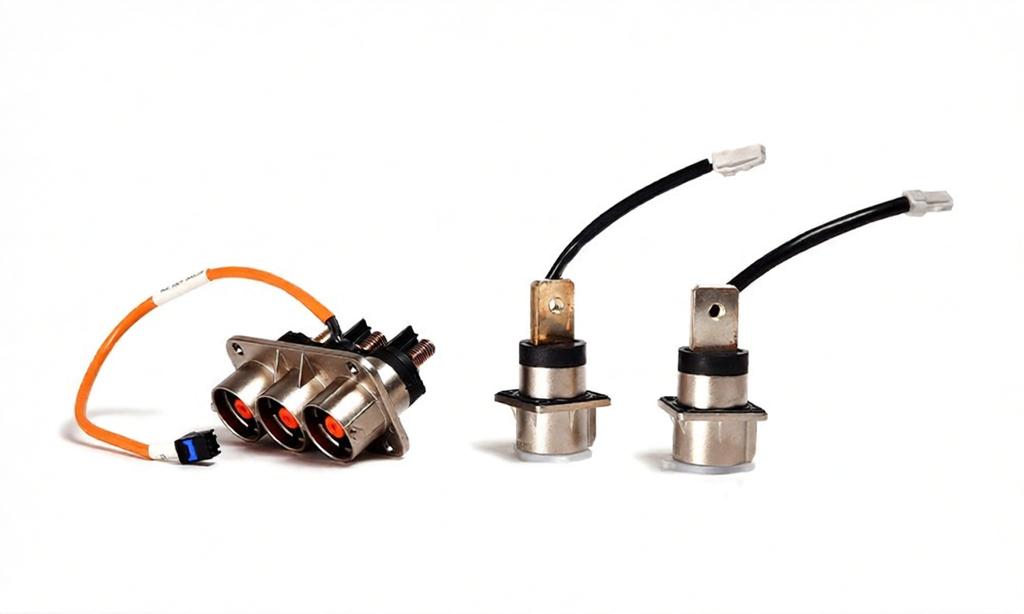

• High-Power Connectors: Optimized for large current load, applied in industrial equipment and power supply systems.
• High-Voltage Connectors: Withstand high-voltage working environment, equipped with reinforced insulation and breakdown resistance.
• Pulse Connectors: Adapt to high-speed pulse signal transmission, ensuring no signal delay or distortion.
• Low-Noise Connectors: Adopt professional shielding structure to suppress electromagnetic noise, suitable for precision measurement equipment.
• Precision Coaxial Connectors: For RF radio frequency and high-precision signal transmission scenarios.

4. Classification by Working Environment

• Waterproof & Dustproof Sealed Connectors: IP-rated sealed design, suitable for outdoor, vehicle and harsh dusty environments.
• High-Pressure Resistant Connectors: Special structural reinforcement, adapting to high-pressure working conditions.
• High-Vacuum Connectors: Applied in vacuum equipment and precision laboratory instruments.
• Three-Proof Connectors: Integrate waterproof, dustproof and anti-corrosion performance, widely used in industrial and military fields.
• Radiation-Resistant Connectors: Resist radiation aging, suitable for aerospace and special industrial scenarios.
• High/Low Temperature Resistant Connectors: Maintain stable performance in extreme high-temperature or low-temperature freezing environments.

5. Classification by Shape & Structure

• Circular Connectors: Round structural design, supporting quick plug-in, thread locking, push-pull self-locking and other methods, commonly used in aerospace, military and industrial equipment.
• Rectangular Connectors: Compact rectangular structure, mostly used for PCB board connection, consumer electronics and general industrial equipment, featuring simple assembly and stable locking.

6. Classification by Application Scenario

• RF Connectors: Professional radio frequency connectors for wireless communication and high-frequency signal transmission.
• Fiber-Optic Connectors: Realize optical signal transmission for communication and optical fiber sensing systems.
• Non-Contact Connectors: Complete signal induction without physical contact, represented by proximity switches and wireless induction modules.

Core Connector Selection Criteria (Step-by-Step)

Reasonable connector selection is the key to ensuring long-term stable operation of equipment. Engineers need to comprehensively evaluate electrical performance, mechanical structure, environmental adaptability and usage frequency:

1. Current & Power Load Capacity

For power connectors, confirm the rated current and power margin strictly. Select specifications with sufficient load capacity according to the peak operating current to avoid overheating, voltage drop and aging failure caused by overload.

2. Overall Size & Mounting Method

Match the connector volume and installation method according to the equipment internal space. For miniaturized precision equipment, select compact low-profile connectors to avoid assembly space conflicts.

3. Impedance Matching Performance

For RF and high-frequency signal transmission scenarios, impedance matching is a core indicator. Mismatched impedance will cause signal reflection, attenuation and data loss, directly reducing equipment accuracy.

4. Electromagnetic Shielding Ability

Precision electronic, medical and communication equipment requires connectors with excellent shielding performance to resist external EMI/RFI interference and ensure signal integrity.

5. Anti-Misplug & Error-Proof Design

Priority shall be given to polarized and directional error-proof connectors to prevent wrong insertion and reverse assembly, effectively avoiding circuit short circuit and equipment damage.

6. Contact Reliability

Select high-reliability contact structures: surface contact is more stable than point contact, and pin-type connectors have better long-term durability than spring structures, reducing poor contact failure rate.

7. Environmental Adaptability

Select corresponding temperature-resistant, waterproof, dustproof and anti-corrosion connectors according to the actual working environment to adapt to extreme temperature, humidity and corrosive conditions.

8. Plugging & Unplugging Cycle Life

For frequently plugged and unplugged interfaces, select connectors with high cycle life and hot-swap support to ensure stable performance after long-term repeated use.

Summary of Standard Selection Logic

The perfect connector matching needs to balance electrical performance, mechanical structure and environmental adaptability. Only by selecting connectors according to actual project parameters can we ensure equipment safety, stable signal transmission and long service life, while controlling comprehensive production costs.

The post The Ultimate Guide to Electrical Connectors: Types, Functions, and Selection Criteria appeared first on Mastdew.

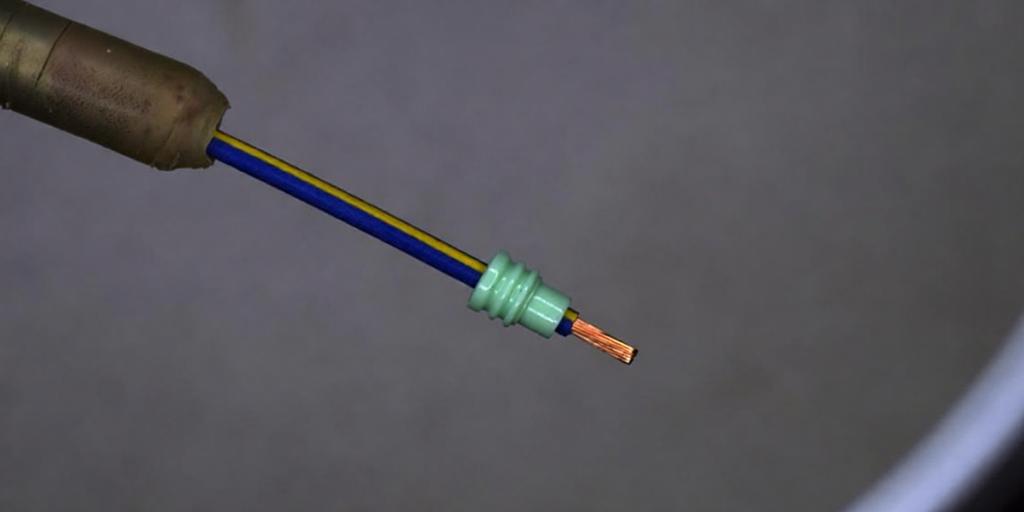

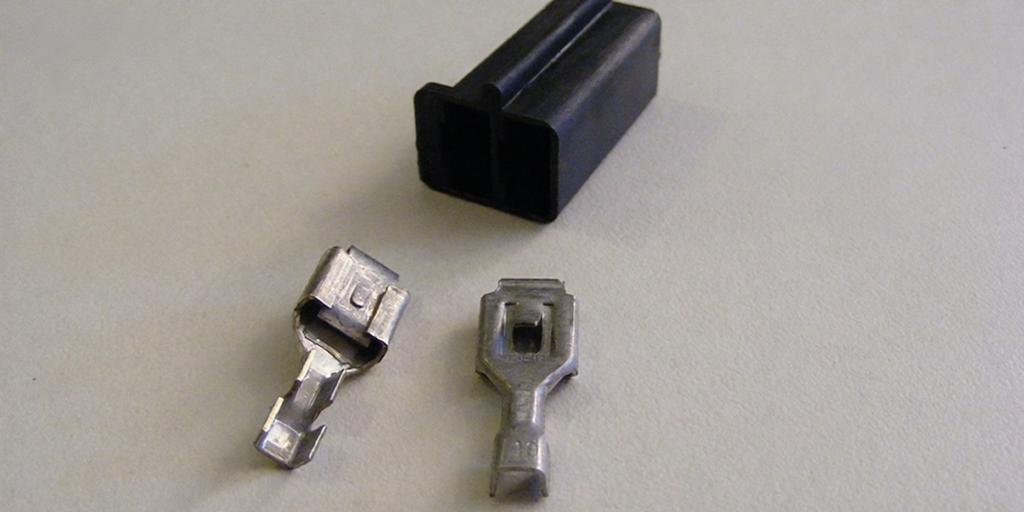

Why Wire Crimp Quality Is Critical

Crimping is a permanent mechanical connection process that integrates wire strands and terminal barrels into a single unit. High-quality crimping brings three core advantages for wire harness systems:

• Superior mechanical stability: Firm compression prevents wire loosening and pull-out during equipment vibration, bending, and long-term operation.
• Low and stable resistance: Tight fitting eliminates gaps and air layers, ensuring smooth current transmission and avoiding heat accumulation.
• Excellent environmental durability: Resists performance attenuation under extreme conditions such as high temperature, low temperature, and humidity.

In contrast, defective crimping will cause hidden dangers such as virtual connection, signal interruption, and local overheating. For high-standard fields including automotive wiring and medical equipment harnesses, unqualified crimping may even trigger equipment failure and safety accidents.

Six Core Judgment Indicators for Qualified Crimping

1. Standard Crimp Height and Compression Degree

Crimp height and crimp width are the most intuitive and accurate dimensional indicators for judging crimp quality. Professional production follows strict standard compression ratios:

The terminal barrel must evenly wrap the wire strands without excessive compression or insufficient fitting. Loose crimping leads to excessive contact resistance and easy wire loosening; over-compression will crush conductor strands, damage wire structure, and reduce tensile strength and service life. Precise crimp dimension control is the foundation of consistent batch quality.

2. Qualified Pull-Out (Tensile) Strength

Pull-out strength testing is a mandatory mechanical inspection item for crimped terminals. It detects the maximum tension that the wire-terminal crimp structure can withstand.

Different wire gauges and terminal specifications have corresponding standard tensile values. Qualified crimping can withstand the rated pull force without detachment or strand breakage. Stable tensile strength represents uniform crimping process and reliable mechanical connection.

3. Low and Stable Electrical Conductivity

Excellent crimping maintains ultra-low contact resistance to ensure loss-free current and signal transmission. Incomplete compression, messy strands, and surface contamination will lead to increased contact resistance, causing local heating, voltage drop, and unstable signal transmission. Regular sampling resistance testing can effectively screen out unqualified products and eliminate hidden quality risks in advance.

4. Standard Visual Appearance Inspection

Visual inspection is the basic and efficient first-line inspection standard for crimp quality. A perfect crimp must meet the following appearance requirements:

• Wire strands are fully inserted into the terminal barrel without missing strands or excessive exposed wire
• No scattered stray wire strands outside the crimping area
• Terminal body is flat and complete, without bending, twisting, cracking or deformation
• Bell mouth and insulation crimping openings are within the standard range, no sharp cuts damaging the wire skin

For high-precision medical and automotive harnesses, microscopic inspection is also used to observe internal strand arrangement and compression uniformity.

5. Strict Process Control and Tool Calibration

Crimp quality depends on standardized process management rather than manual operation alone. Professional harness manufacturers will match exclusive crimping dies and tools according to wire gauge and terminal models. Regular tool calibration, wear detection and maintenance are essential to avoid dimensional deviation caused by aging equipment. Automated production also monitors crimping force and height in real time to ensure zero defective products in batches.

6. Compliance with International Industry Standards

Reliable crimping quality must comply with authoritative industry specifications, including IPC/WHMA-A-620 general electronic harness standard and USCAR-21 automotive crimping standard. These standards clearly define crimp dimension tolerance, tensile strength range, compression ratio and inspection frequency, providing unified quality evaluation criteria for mass production.

How to Verify a Supplier’s Crimping Manufacturing Capability

When selecting a custom wire harness supplier, crimping process capability is a core evaluation dimension. You can judge the supplier’s professionalism through the following details:

• Complete Crimp Process Specification (CPS), including wire-terminal matching standards, target crimp dimensions, and detailed testing procedures
• Complete inspection reports, including crimp height data, pull-out test records, and visual inspection photos
• Standardized tool calibration and equipment maintenance system with complete documented records
• Regular operator professional training and process audit mechanisms to ensure stable batch quality

Reliable Wire Harness Crimping Solutions from TSP

With 26 years of professional wire harness and cable assembly manufacturing experience, TSP Technology strictly follows international industry standards in terminal crimping production. We implement full-process standardized control from tool matching, precision crimping molding to sampling testing, providing high-reliability crimped harness products for automotive, medical, industrial and smart device industries.

The post How to Judge Wire Harness Crimp Quality and Ensure Reliable Connections appeared first on Mastdew.
