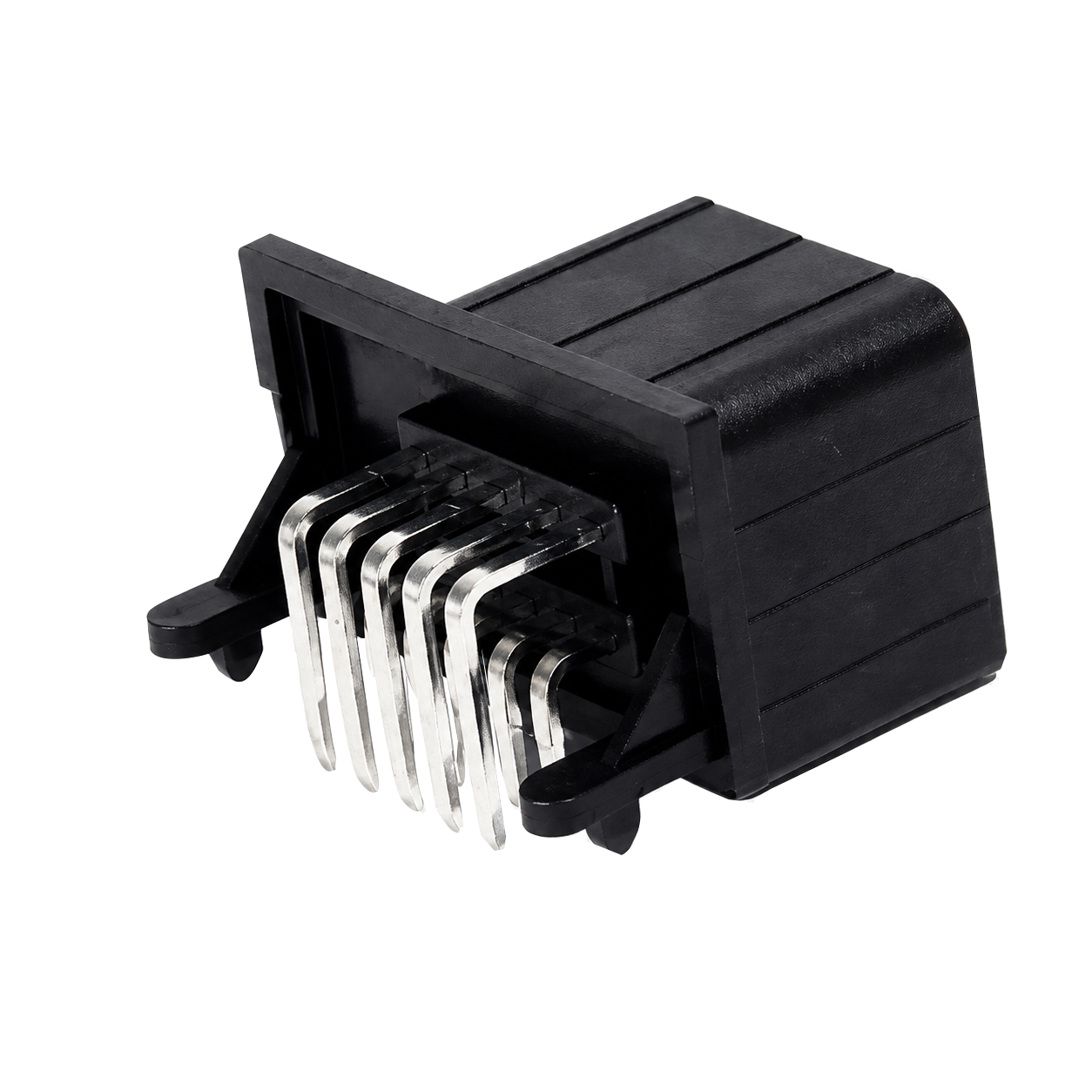

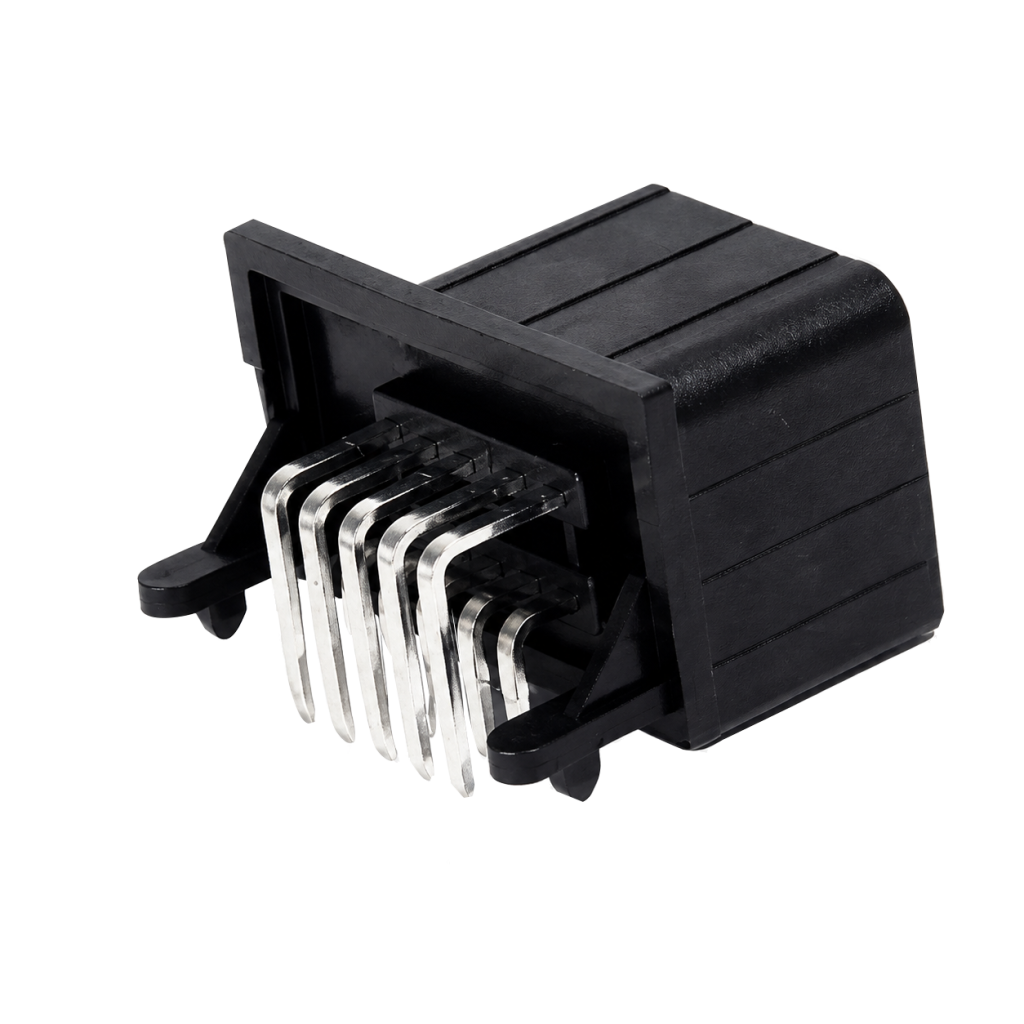

YES/YESC Series ,Wire to Borad,Pitch 7.0,2 ROW,10P,Female,unsealed connector,PA66+GF Gray.The YES/YESC series is the preferred product by many car sunroof controller manufacturers
POSITIONS
8 – 35SEALING RATING
IP67CURRENT RATING
17 AOPERATING TEMP
−40 → 125 °C| Product type Features | Series | YES/YESC | Products Category | Wire to Board |
| Male/Female | Male | Pitch(mm) | 7.0 | |
| Configuration Features | Row | 2 | Number of Positions | 10 |
| Specifications and Features | Material | PA66+30%GF | Flame retardancy | UL 94-V0 |
| Color | Black | Plating | Tin plating | |
| Packaging Features | Packling | Bag | SPQ | 576 |
| Other Features | Waterproof | - | Factory Model | - |
| Electrical Features | Rated current | - | Rated voltage | - |
| Operating Temperature | -40-120°C | Withstand Voltage | 1000V/AC 1Mintue | |
| Contact resistance | 10mΩ Max | Insulation resistance | 100MΩ Min |
