Header

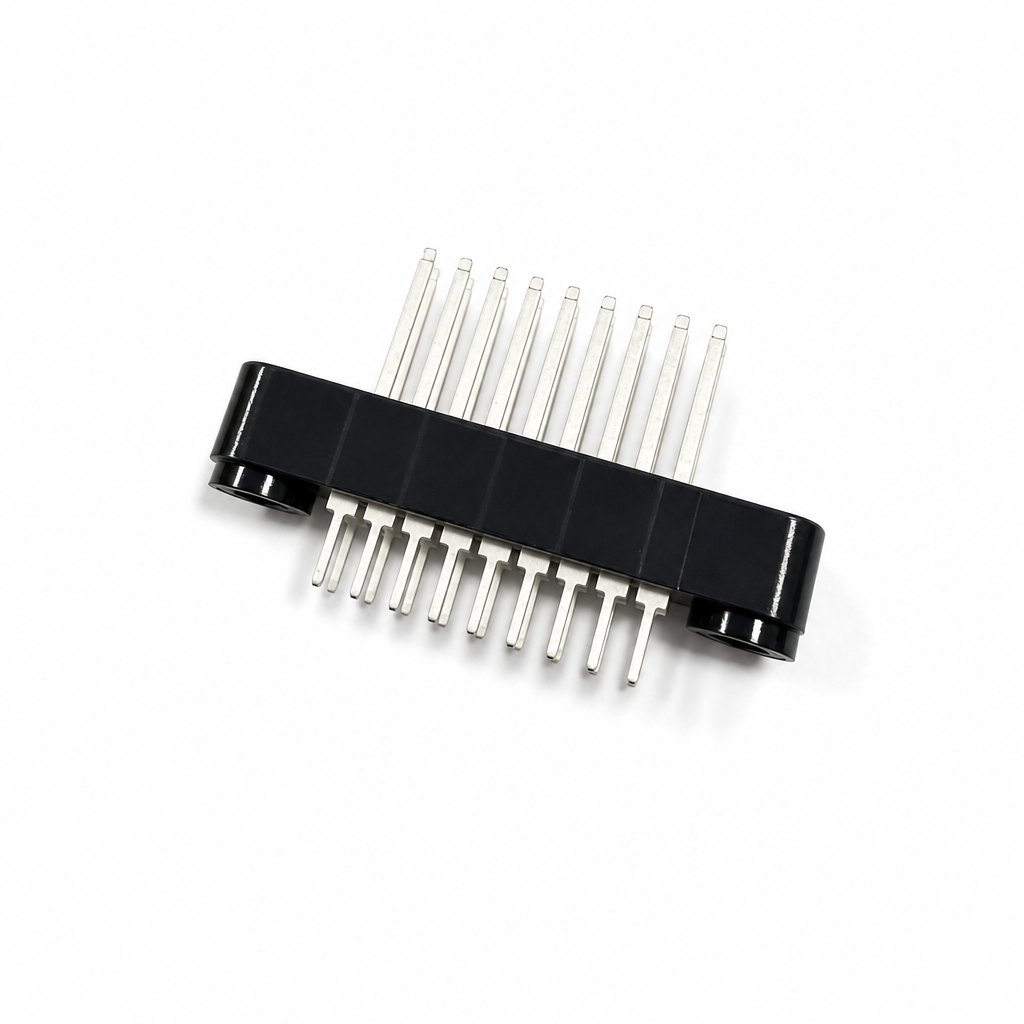

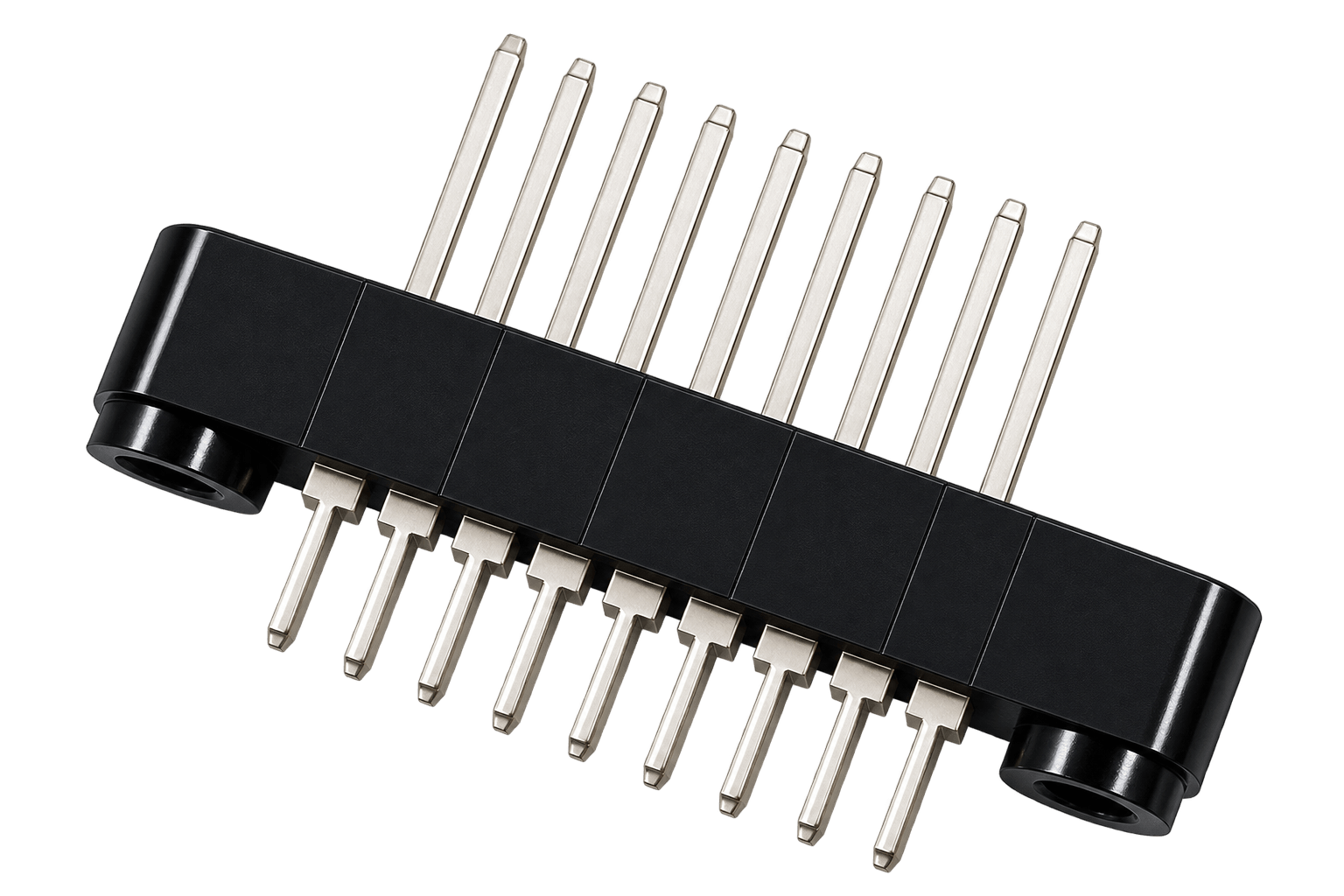

XW0001018MBA-H

Sealed IP67 / Automotive / IATF 16949

Header Series(040),Wire to Borad,Pitch 2.5,2 ROW,18P,Male,waterproof connector,PBT+30%GF Black. The Header series connector adopts the 040 type connector core structure, and its outer frame is connected to the controller housing, achieving waterproof effect by tightly fitting with the housing

POSITIONS
8 – 35
SEALING RATING
IP67
CURRENT RATING
17 A
OPERATING TEMP
−40 → 125 °C

Request a Quote

Download Datasheet

Technical Data

Product type Features	Series	Header	Products Category	Wire to Board
	Male/Female	Male	Pitch(mm)	2.5
Configuration Features	Row	2	Number of Positions	18
	Applicablewire range	-	Applicable Contacts	-
	Receptacle Style	180°C	Mating Connector	JH0001018FBA-A
Specifications and Features	Material-Plastic	PBT+30%GF	Flame retardancy	UL 94-V0
	Material-Metal	Brass	Plating	Tin-plating
	Color	Black
Packaging Features	Packling	Bag	SPQ	1500
Other Features	Waterproof	-	Original Factory Model	-
Electrical Features	Rated current	3A	Rated voltage	-
	Operating Temperature	-	Withstand Voltage	-
	Contact resistance	10mΩ Max	Insulation resistance	100MΩ Min
