AMPSEAL

XH0001308FBA-A

Sealed IP67 / Automotive / IATF 16949

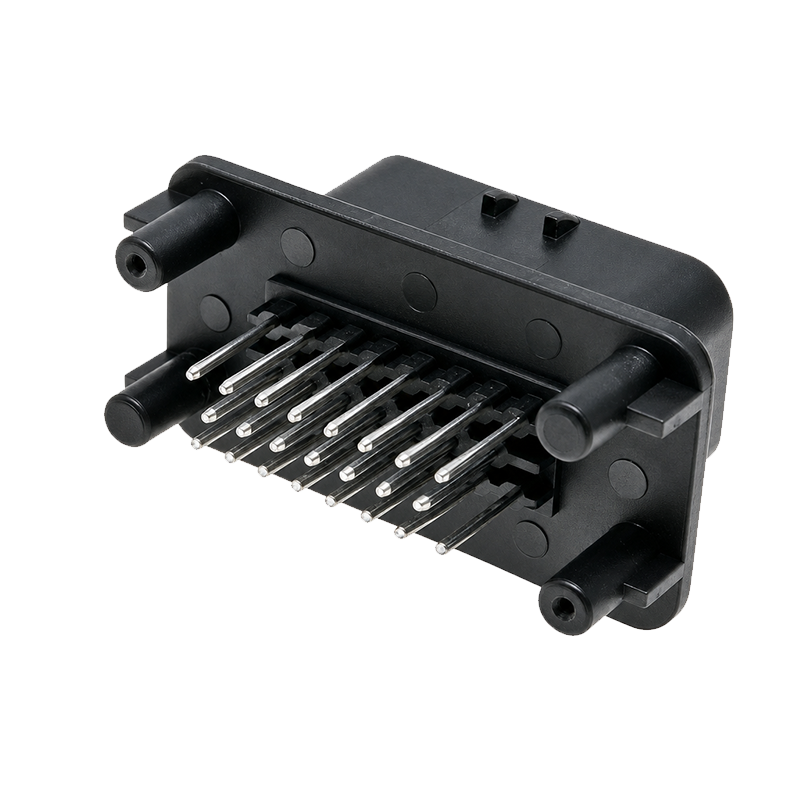

AMPSEAL Series ,Wire to Board,Pitch4.0,3ROW,35P,Male,sealed connector,PBT+GF,Black

POSITIONS
8 – 35
SEALING RATING
IP67
CURRENT RATING
17 A
OPERATING TEMP
−40 → 125 °C

Request a Quote

Download Datasheet

Technical Data

Product type Features	Series	AMPSEAL	Products Category	Wire to Board
	Male/Female	Male	Pitch(mm)	4.0
Configuration Features	Row	3	Number of Positions	35
	Applicablewire range	-	Applicable Contacts	-
	Receptacle Style	180°C	Mating Connector	XH0013*FBA-A
Specifications and Features	Material-Plastic	PBT+GF	Flame retardancy	-
	Material-Metal	Brass	Plating	Tin plating
	Color	Black
Packaging Features	Packling	Bag	SPQ	-
Other Features	Waterproof	-	Original Factory Model	-
Electrical Features	Rated current	-	Rated voltage	-
	Operating Temperature	-	Withstand Voltage	-
	Contact resistance	-	Insulation resistance	-

feature

Engineered for Peak Performance

AMPSEAL connectors are designed for cable-to-board harsh environment applications.
Environmentallysealed for rugged reliability, these connectors are available in cable plugs and PCB mount headers engineeredto withstand extreme temperature and moisture, including high-temperature underhood applications.
The pre-assembled receptacle housing connector features built-in contact sealing and an integral interfacial sealthat protects mated connectors.
Rated to IP69K, AMPSEAL connectors are offered in arrangements from8 to 35 positions.
