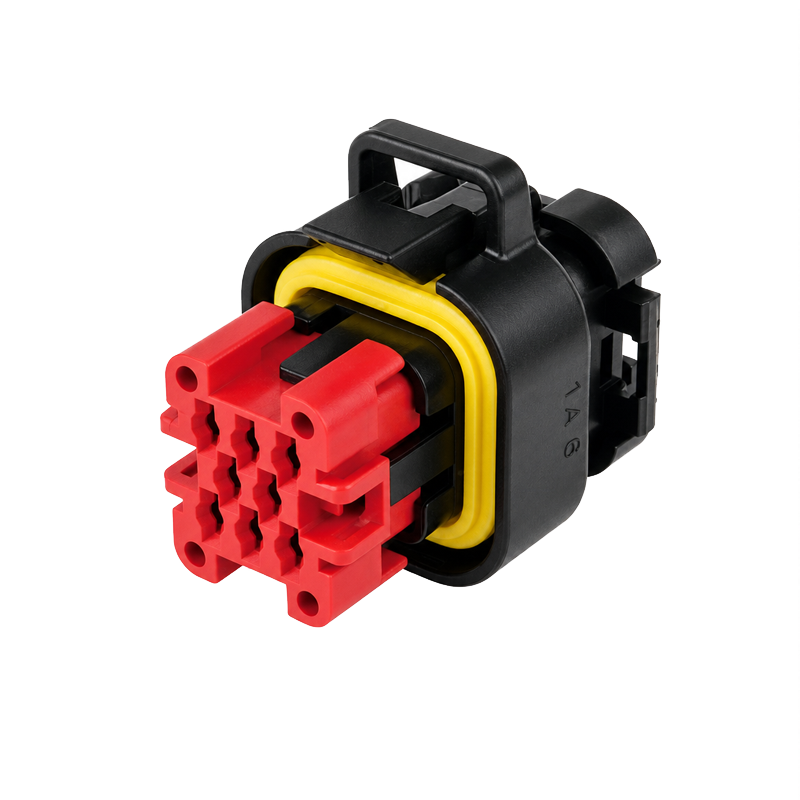

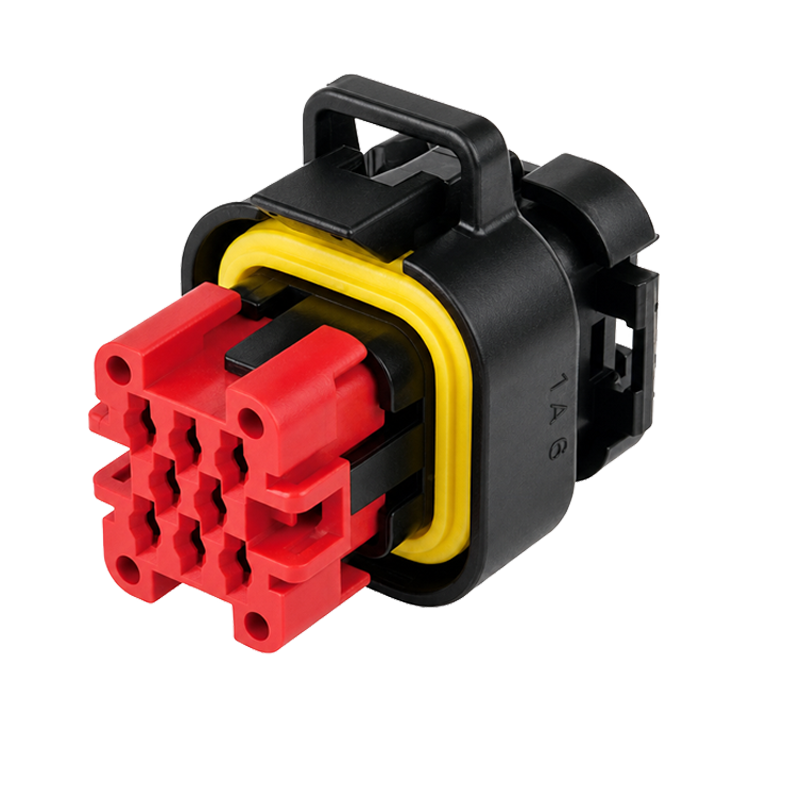

AMPSEAL Series ,Wire to Board,Pitch4.0,3ROW,08P,Female,sealed connector,PBT+GF,Black
POSITIONS
8 – 35SEALING RATING
IP67CURRENT RATING
17 AOPERATING TEMP
−40 → 125 °C| Product type Features | Series | AMPSEAL | Products Category | Wire to Board |
| Male/Female | Female | Pitch(mm) | 4.0 | |
| Configuration Features | Row | 3 | Number of Positions | 08 |
| Applicablewire range | - | Applicable Contacts | - | |
| Receptacle Style | - | Mating Connector | XW0*013**MBA-A | |
| Specifications and Features | Material-Plastic | PBT+GF | Flame retardancy | - |
| Material-Metal | - | Plating | - | |
| Color | Black | |||
| Packaging Features | Packling | Bag | SPQ | - |
| Other Features | Waterproof | - | Original Factory Model | - |
| Electrical Features | Rated current | - | Rated voltage | - |
| Operating Temperature | - | Withstand Voltage | - | |
| Contact resistance | - | Insulation resistance | - |
AMPSEAL connectors are designed for cable-to-board harsh environment applications.
Environmentallysealed for rugged reliability, these connectors are available in cable plugs and PCB mount headers engineeredto withstand extreme temperature and moisture, including high-temperature underhood applications.
The pre-assembled receptacle housing connector features built-in contact sealing and an integral interfacial sealthat protects mated connectors.
Rated to IP69K, AMPSEAL connectors are offered in arrangements from8 to 35 positions.
