CMC

XW0006448MBA-A

Sealed IP67 / Automotive / IATF 16949

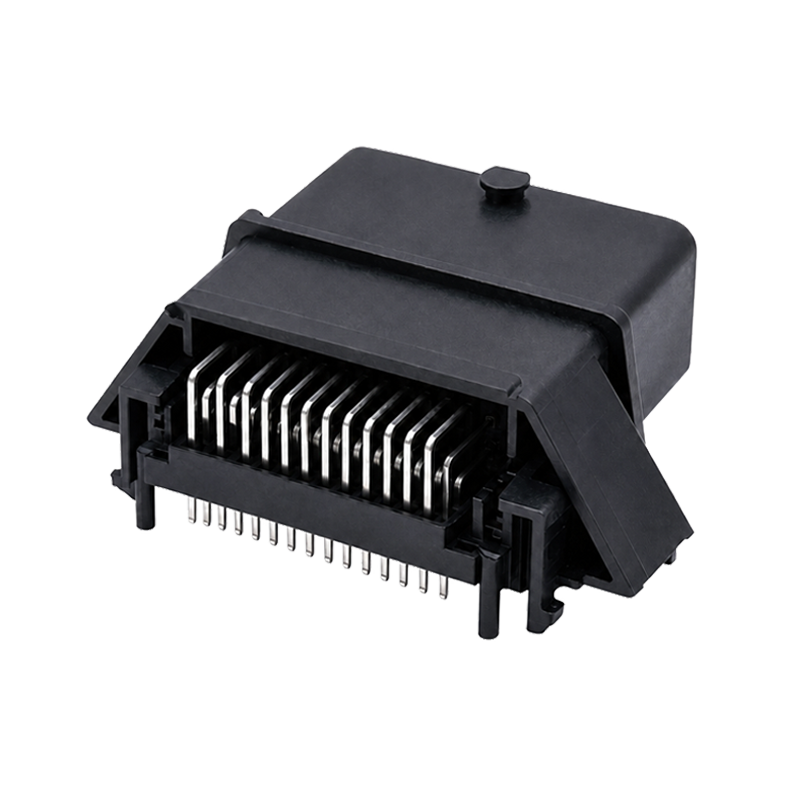

CMC/CMK Series,Wire to Borad,Pitch 2.5,3.5,3.7,4ROW,48P,Male,waterproof connector,PBT+GF Black， CMC/CMX product family of hybrid, high-density, sealed connectors deliver high performance for harsh environments

POSITIONS
8 – 35
SEALING RATING
IP67
CURRENT RATING
17 A
OPERATING TEMP
−40 → 125 °C

Request a Quote

Download Datasheet

Technical Data

Product type Features	Series	CMC/CMK	Products Category	Wire to Board
	Male/Female	Male	Pitch(mm)	2.5,3.5,3.7
Configuration Features	Row	2	Number of Positions	48
	Applicablewire range	-	Applicable Contacts	-
	Receptacle Style	-	Mating Connector	XH0006448FBA-A
Specifications and Features	Material-Plastic	PBT+GF	Flame retardancy	UL 94-V0
	Material-Metal	Barss	Plating	Tin plating
	Color	Black
Packaging Features	Packling	Bag	SPQ	-
Other Features	Waterproof	IP67	Original Factory Model	500762-0481
Electrical Features	Rated current	-	Rated voltage	-
	Operating Temperature	-	Withstand Voltage	-
	Contact resistance	-	Insulation resistance	-
