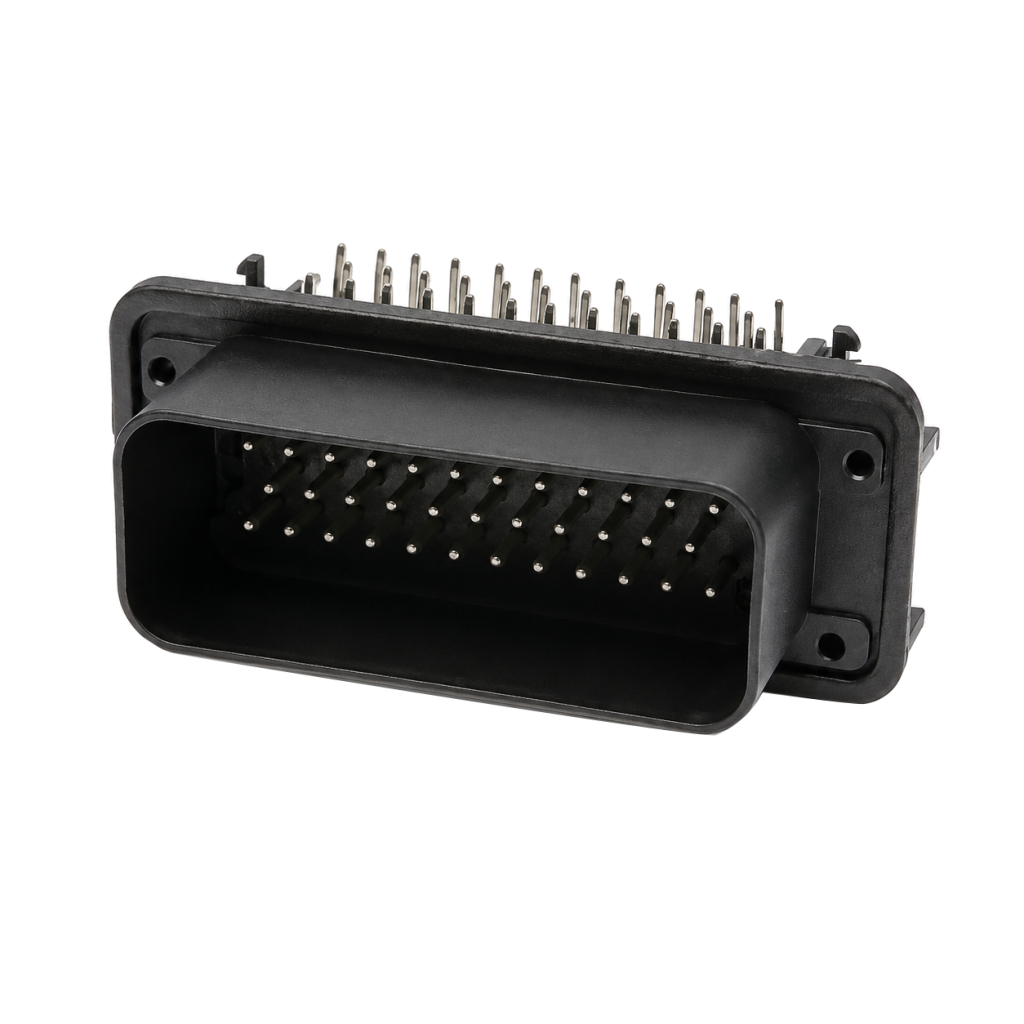

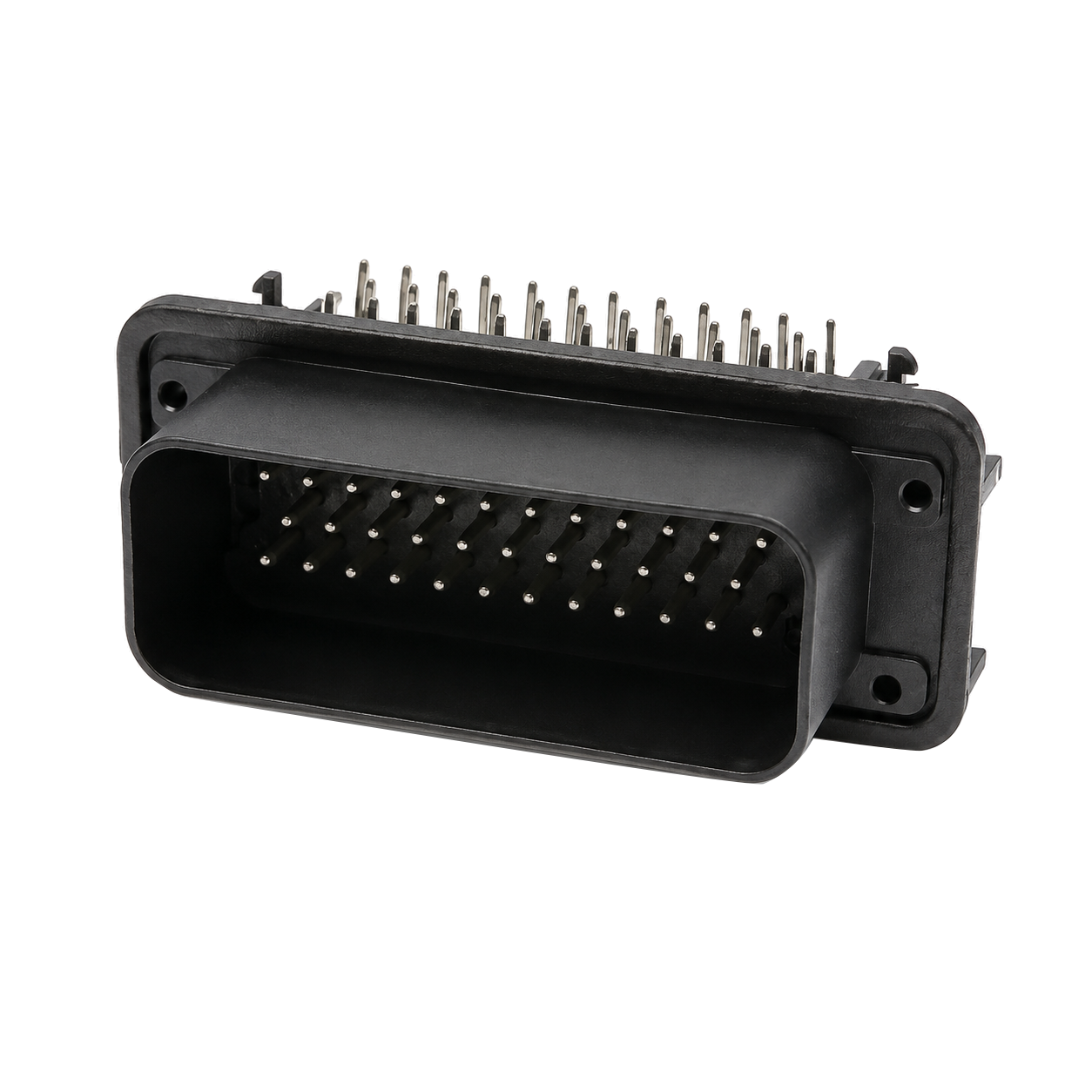

776163-1-35PIN Male-waterproof Automotive Connector

AMPSEAL Series ,Wire to Board,Pitch4.0,3ROW,35P,Male,sealed connector,PBT+GF,Black

Pitch(mm)
4.0
Row
3
Receptacle Style
90 °C
Number of Positions
35

Request a Quote

Product

XW0001335MBA-A

AMPSEAL connectors are designed for cable-to-board harsh environment applications. Environmentallysealed for rugged reliability, these connectors are available in cable plugs and PCB mount headers engineeredto withstand extreme temperature and moisture, including high-temperature underhood applications.The pre-assembled receptacle housing connector features built-in contact sealing and an integral interfacial sealthat protects mated connectors. Rated to IP69K, AMPSEAL connectors are offered in arrangements from8 to 35 positions.

XW0001335MBA-A

Technical Data

Product type Features	Series	AMPSEAL	Products Category	Wire to Board
	Male/Female	Male	Pitch(mm)	4.0
Configuration Features	Row	3	Number of Positions	35
Specifications and Features	Material	PBT+GF	Flame retardancy	-
	Color	Black	Plating	Tin plating
Packaging Features	Packling	Bag	SPQ	-
Other Features	Waterproof	-	Factory Model	-
Electrical Features	Rated current	-	Rated voltage	-
	Operating Temperature	-	Withstand Voltage	-
	Contact resistance	-	Insulation resistance	-
