MX23A (040)

JT00010DPS-2

Sealed IP67 / Automotive / IATF 16949

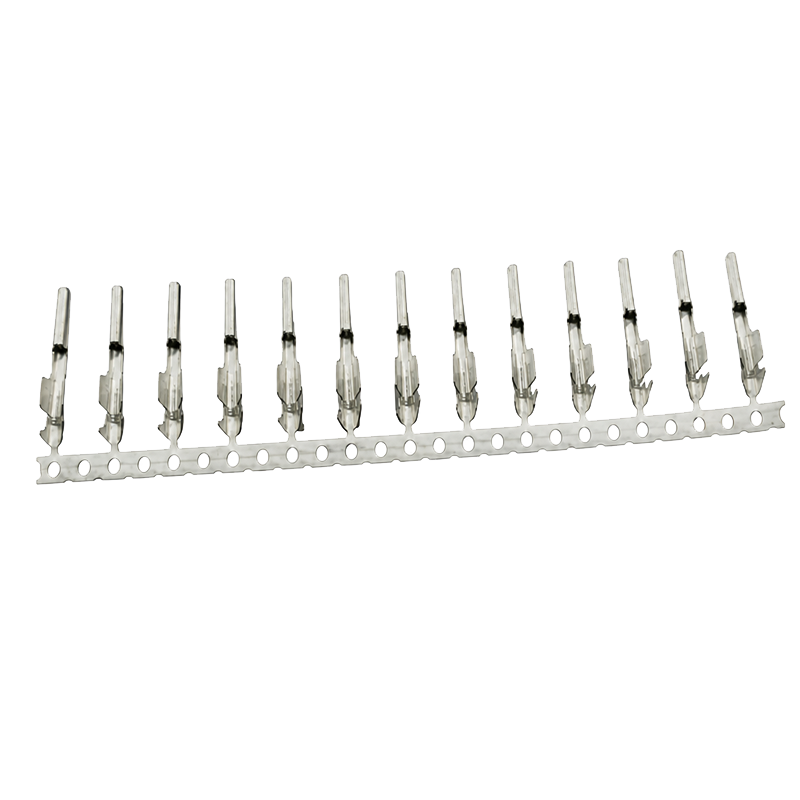

MX23A Series,Wire to Borad,Pitch 2.5, F Terminal, Phosphor Bronze,Tin Plating,0.5-0.75,Reel.

SEALING RATING
IP67
CURRENT RATING
17 A
OPERATING TEMP
−40 → 125 °C

Request a Quote

Download Datasheet

Technical Data

Features	Series	MX23A(040)	Products Category	Terminal
	Male/Female	F	Pitch(mm)	2.5
Configuration Features	Row	-	Number of Positions	-
	Applicablewire range	AVSS 0.5-0.75	Applicable Contacts	-
	Receptacle Style	-	Mating Connector	JH00010**FBA-A
Specifications and Features	Material-Plastic	-	Flame retardancy	-
	Material-Metal	Phosphor Bronze	Plating	Tin plating
	Color	-
Packaging Features	Packling	Reel	SPQ	7000
Other Features	Waterproof	-	Original Factory Model	M23S05K351
Electrical Features	Rated current	3A	Rated voltage	-
	Operating Temperature	-40-120°C	Withstand Voltage	1000V/AC 1Mintue
	Contact resistance	10mΩ Max	Insulation resistance	100MΩ Min

Sealed, Keyed, And Built To Survive The Engine

MX23A connector is a compact, low-profile, waterproof connector that can be used in a wide range of waterproof equipment including automobiles, motorcycles and other outdoor equipment.

This connector has high environmental capability with a waterproof structure consisting of a seal ring in its mating area and a grommet in its wire insertion area for full protection against water.

Perimeter Silicone Seal
Positive-lock Latch
Terminal Position Aassurance
Machined to 0.001 MM

We Offer Bespoke Molding
