Sealed IP67 / Automotive / IATF 16949

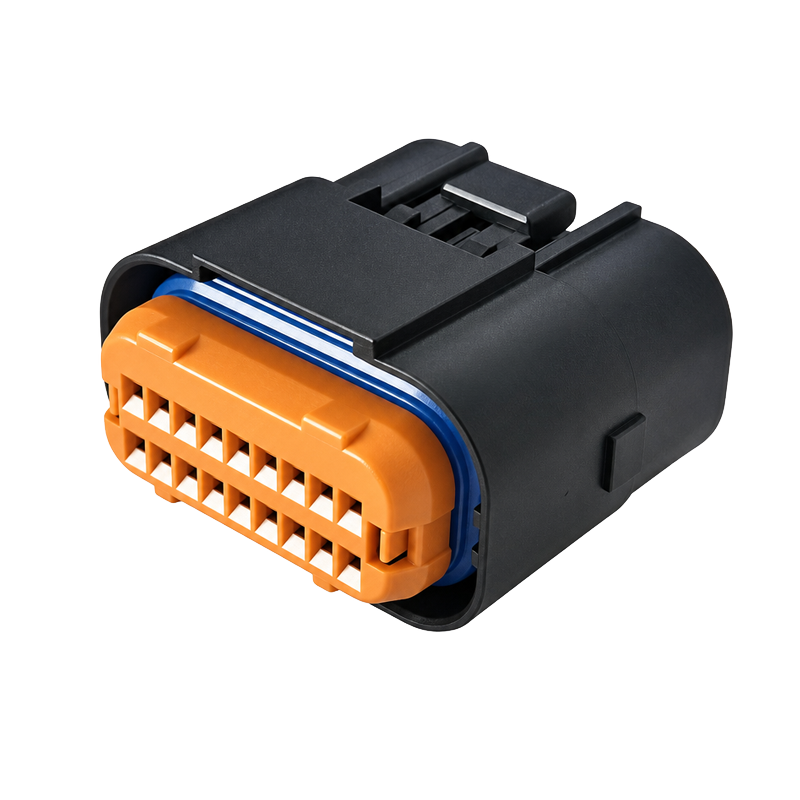

MX23A Series (040),Wire to Borad,Pitch 2.5,2 ROW,18P,Female,waterproof connector,PBT+30%GF Black

POSITIONS
8 – 35
SEALING RATING
IP67
CURRENT RATING
17 A
OPERATING TEMP
−40 → 125 °C

Request a Quote

Download Datasheet

Technical Data

Product type Features	Series	MX23A(040)	Products Category	Wire to Board
	Male/Female	Female	Pitch(mm)	2.5
Configuration Features	Row	2	Number of Positions	12
	Applicablewire range	-	Applicable Contacts	JT00010DPS-2/JT01010EPS-2
	Receptacle Style	-	Mating Connector	JW0001018MBA-A
Specifications and Features	Material-Plastic	PBT+30%GF	Flame retardancy	UL 94 HB
	Material-Metal	-	Plating	-
	Color	Black
Packaging Features	Packling	Bag	SPQ	336
Other Features	Waterproof	IP67	Original Factory Model	MX23A18SF1
Electrical Features	Rated current	3A	Rated voltage	-
	Operating Temperature	-40-120°C	Withstand Voltage	1000V/AC 1Mintue
	Contact resistance	10mΩ Max	Insulation resistance	100MΩ Min

Sealed, Keyed, And Built To Survive The Engine

MX23A connector is a compact, low-profile, waterproof connector that can be used in a wide range of waterproof equipment including automobiles, motorcycles and other outdoor equipment.

This connector has high environmental capability with a waterproof structure consisting of a seal ring in its mating area and a grommet in its wire insertion area for full protection against water.

Perimeter Silicone Seal
Terminal Position Aassurance
Machined to 0.001 MM

We Offer Bespoke Molding

R&D Factory Workshop

· Precision Manufacturing Capability: We excel in precision machining at tolerances as fine as 0.001 mm, meeting the most demanding requirements for dimensional and geometric accuracy. This ensures consistent quality and reliability across every product we deliver.
